Architecture Documentation
Infrastructure Architecture
Documenting real-world infrastructure designs, cloud migration strategies, and AWS solution architectures.
MC-001 Architecture
Enterprise Help Desk Migration architecture from on-premises infrastructure to AWS cloud.

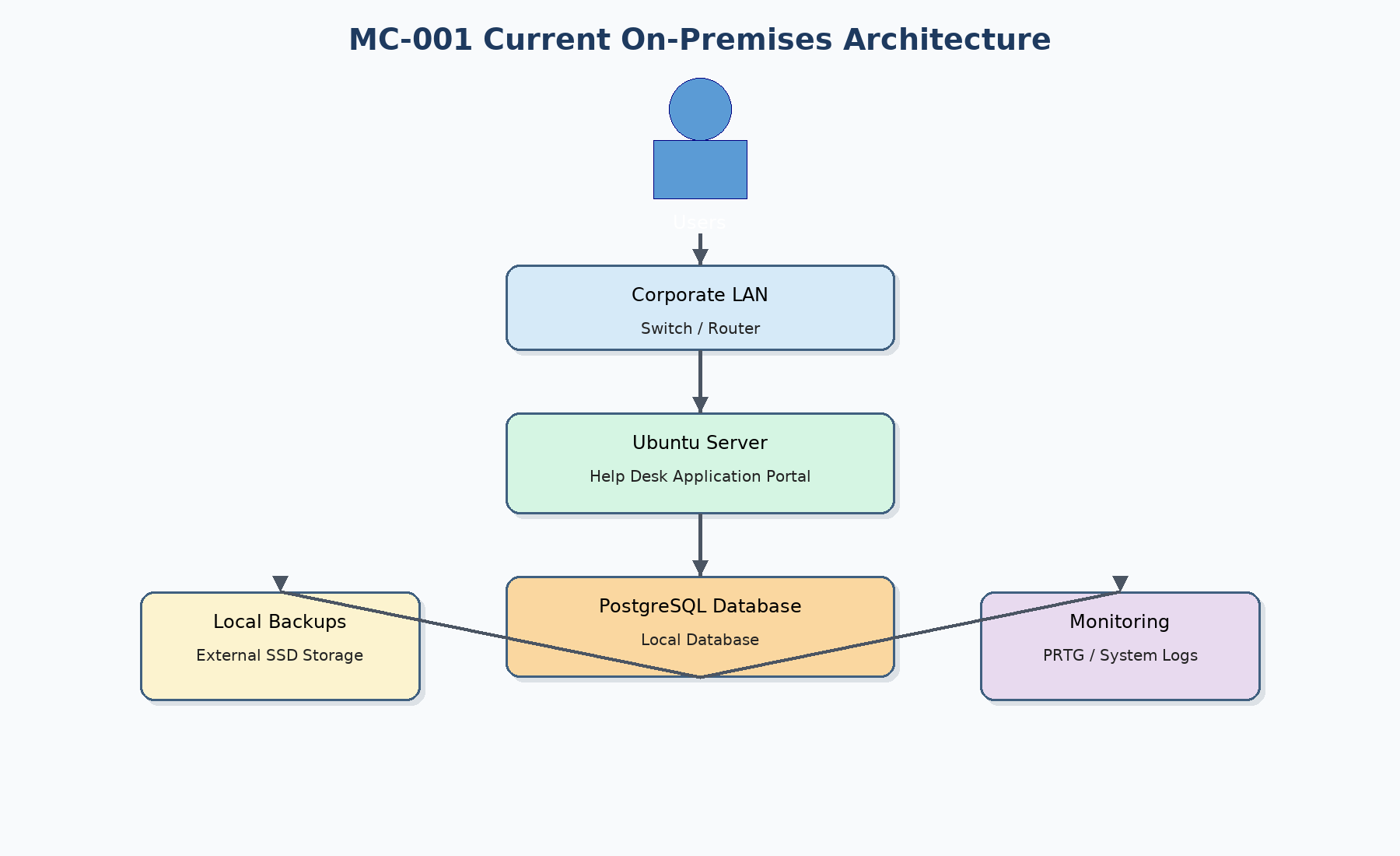

Figure 1: Current On-Premises Architecture
The initial deployment runs on a local Ubuntu Server with PostgreSQL, providing a controlled environment for development, testing, and validation before cloud migration.
Figure 2: Target AWS Cloud Architecture
The target architecture leverages Amazon EC2, Amazon RDS, Amazon S3, CloudFront, Route 53, and CloudWatch to deliver a secure, scalable, and highly available application.
Figure 3: Migration Roadmap
A phased migration strategy beginning with an on-premises deployment, followed by AWS migration and long-term modernization toward cloud-native services.
